TSC TC310 Desktop Label Printer

The TSC TC310 desktop label printer is versatile.  Call Barcode Southwest at 888-764-9965 to learn how this printer can work for you!

The video shows the TSC TC201; it prints 203 dots per inch (dpi).  The TSC TC310 prints 300 dpi.

Key Features of the TSC TC310 Thermal Label Printer

This user-friendly TSC TC310 desktop label printer offers six key features.

The first feature is its small size featuring the rugged clamshell design.

  • This printer is only 7.99″ x 7.54″ with a depth of 10.21″.

A second plus is the option of direct thermal printing OR thermal transfer (ribbon required) printing.

  • At 300 dots per inch (dpi), the TSC TC310 prints up to 4″ inches per second (ips).
  • Both direct thermal and thermal transfer methods produce crisp, clean labels.

A third user-friendly feature is the ease with which labels and ribbons are loaded.  The clamshell design and internal loading guide save time and may reduce loading errors.

The fourth feature to note is the Label and Ribbon Capacity.

    • The TSC TC310 supports a full 5″ OD core.
    • Prints label widths ranging from less than 1″ to 4.4″.

As a fifth feature, is the printers ability to print 1D and 2D barcodes

The final key features is the 2.3″ color LED touch-button set up guide.  Six external operation buttons make set up and operation easy.

TSC TC310 Desktop Printer-Barcode Southwest

Optional Accessories for the TSC TC310 Desktop Label Printer

Barcode Southwest recommends the following accessories;

  • First, an External Roll Mount.  This printer comes with a 5″ inch OD label capacity.  The external roll mount gives an additional 3″ OD capacity.
  • A second accessory is the External Rewinder for longer print runs.
  • Finally, we offer the Print and Peel option for the times you need only one label.

TSC TC310 Desktop Label Printer Applications

Barcode Southwest recommends the following applications for the TSC TC310 Desktop label printer:

  • Point of Sale
  • Shipping/Receiving
  • Inventory Control
  • Product Marking
  • Receipt/Coupon Printing
  • Compliance Labeling
  • Document Management
  • Medical
    • Specimen Labeling
    • Patient Tracking

Limited Warranty For TSC Barcode Printers and Accessories

 TSC Warranty-Barcode Southwest

AN ADDITIONAL WARRANTY NOTE:  This printer also has a 12 months/1 million linear inch (whichever comes first) limited warranty.

Extended Warranty Program

Barcode Southwest also offers an Extended Warranty Program through TSC.  This warranty covers printers and accessories.

The TSC Extended Warranty Program has two components: it enables users to protect their investment and ensures their barcode printer is always in top working condition. This warranty is an extension to the original two-year warranty.   Additionally, this warranty exceeds that of any TSC’s competitors.

Call Barcode Southwest at 1-888-764-9965 to see how we can help you put the TSC TX600 to work for your Houston, TX company.  Or complete our contact form!

Barcode Southwest is a premier supplier of barcode printers and labels for a wide range of industry applications.  We supply to clients all over the Southwest region of the U.S., including, but not limited to, Houston, Austin, Dallas, San Antonio and Waco.

Happy Printing 😊

Please visit our Barcode Southwest Facebook page.

Posted December 06, 2021 By Lucy

Lucy's Blog Picture-Barcode Southwest

Barcode Printers for Houston, Austin, Dallas, San Antonio and Waco

Industrial or Desktop Barcode Printer: Find Your Best Match

Industrial or desktop barcode printer: Find your best match.  There are many makes and models of barcode printers.  Barcode Southwest works with companies to help determine which style (industrial or desktop) barcode printer best meets their needs.  Call us at 888-764-9965 to learn more!

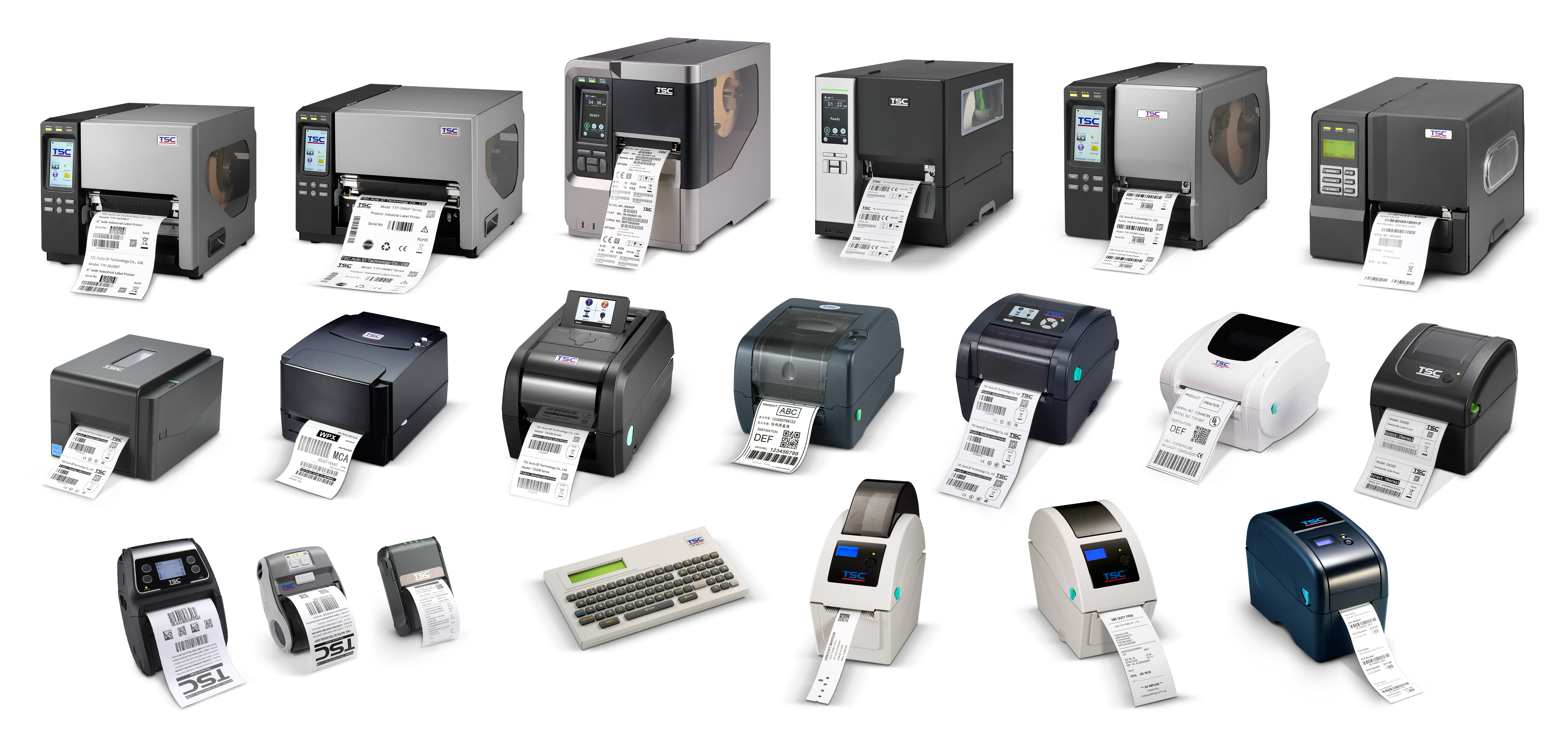

Industrial or Desktop Barcode Printer: TSC Family of Printers-Barcode Southwest

The TSC Family of Barcode Printers



Industrial or Desktop Barcode Printer: Finding Your Best Match

Your first consideration when looking for the best match for your company and your application is the style of printer.

There are two styles:

  • Industrial
  • Desktop

Industrial Barcode Printers

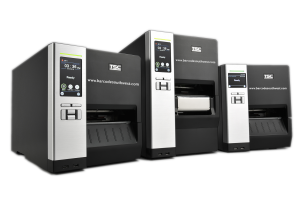

TSC MH Series Industrial Barcode Printers-Barcode Southwest

These printers are obviously much larger than their desktop counterparts.  An industrial barcode printer is perfect for:

  • High volume print runs.
  • Label widths ranging from 1-6 inches.
  • Rugged, iron cast construction for durability.
  • Performance Stability in harsh manufacturing environments.
    • Extreme ranges of hot and cold
    • Humid
    • Dusty

Optional Accessories for Industrial Barcode Printers

Once you have determined an industrial barcode printer to be the best match for your company, the next decision would be optional accessories:

  • Internal Rewinder.
    • The optional internal rewinder is especially useful for those long print jobs.
    • Labels are rewound on to a 5″ OD core.
  • External Rewinder
    • An external rewinder is more cost-efficient than the internal rewinder.
    • This rewinder will require extra desktop space than an internal rewinder,
  • Cutter Type.
    • Full Guillotine OR Heavy-Duty Cutter.

Barcode Southwest has many articles featuring industrial barcode printers.  Refer to these articles for more information and printer specs.  https://www.barcodesouthwest.com/lucys-blog/



Desktop Barcode Printers

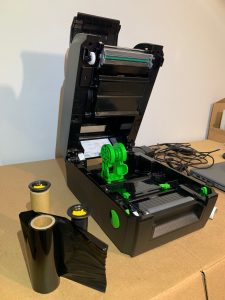

TSC TX300 Clamshell

As the name implies, desktop barcode printers (featuring the clam shell design) are perfect for environments with less space.  A desktop barcode printer is perfect for:

  • Small space for printer use and storage.
  • Smaller volume print runs.
  • Label widths ranging from 1-4 inches.
  • A consistent controlled environment.

Barcode Southwest has many articles featuring desktop barcode printers.  Refer to these articles for more information and printer specs.  https://www.barcodesouthwest.com/lucys-blog/



Industrial or Desktop Barcode Printer: Find Your Best Match

Once you have determined the style of barcode printer that best fits your company, application and environment, the next step is to choose direct or thermal transfer printing.  Direct thermal or thermal transfer printing are compatible with industrial or desktop printers.

Direct Thermal Barcode Printing

A direct thermal barcode printer works by using the printhead to heat chemically treated paper or synthetic labels.  The labels react by producing a black image. These types of barcode printers are easy to operate and efficient to use as they require no ribbon, ink or toner refills.

The imaging is crisp and clean, producing a barcode image that is easy to scan.  A direct thermal barcode printer is reliable in applications where the barcode images require only a short shelf life. A disadvantage is that the chemically treated label material can be affected by other heat sources.

Thermal Transfer Printing

The second type of barcode printer is the thermal transfer printer.  This printer also uses a printhead and heat to “transfer” an image on the label.  However, the “transfer” occurs in a fashion that differs from direct thermal barcode printers.  Thermal transfer printers use an ink-coated ribbon that transfers the image onto the label (media).  This type of imaging will last longer than those from direct thermal printing.  It is critical to ensure the ribbon is compatible with the printing surface.  Without compatibility, the thermal ink will not adhere.



Barcode Southwest is a premier supplier of barcode printers and labels for a wide range of industry applications.  We supply to clients all over the Southwest region of the U.S., including, but not limited to, Houston, Austin, Dallas and San Antonio.  Contact Barcode Southwest at 888-764-9965 or fill out this contact form!

Happy Printing  🙂

Please visit our Barcode Southwest Facebook page.

Posted November 22, 2021  By Lucy

Lucy's Blog Picture-Barcode Southwest

Industrial and Desktop Barcode Printers for Houston, Austin, Dallas and San Antonio.

Zebra ZT411 Industrial Barcode Printer

The Zebra ZT411 industrial barcode printer is both rugged and user-friendly.   It is  designed to keep your operations running smoothly.  Call Barcode Southwest at 888-764-9965 to find out more about the ZT411 industrial barcode printer.



ZT411 Industrial Barcode Printer-Barcode Southwest

Features of the Zebra ZT411 Industrial Barcode Printer

Rugged Construction

  • This Zebra printer has a sturdy metal frame.  This frame holds up in the most rugged of print environments.
  • The bifold media cover has a clear window which allows the user a quick visual of both label material and ribbons.

    • The bi-fold side door not only saves space but makes loading and unloading of all print media (ribbons and labels) fast and easy.

      • A lighted internal media loading path is clearly printed on the printer wall.  The media guide saves time and can prevent loading errors.   Eliminating errors saves printer “down time.”

Easy to Operate

The 4.3-inch full-color touch display allows users to navigate printer settings such as:

  • Print speed
  • Density
  • Media type
  • Printer calibration

Print Features

The Zebra ZT411 industrial barcode printer has both thermal transfer AND direct thermal print capabilities.

  • The ZT411 prints label widths ranging  from .79″ to 4.09″.
  • Linear (UPC) and two dimensional (QR) barcode printing.
  • Its maximum print speed is 14 inches per second (ips).
  • This industrial barcode printer is available in print resolutions of 203, 300, and 600 dots per inch.
  • The following media types can be printed:
    • Continuous feed
    • Die-cut
    • Notched
    • Black mark

Available Media Handling Options

The following media handling options are available for the ZT411 industrial barcode printer.

  • Internal rewinder will rewind a full 8″ label roll on a 3″ core
  • Peeler that rewinds label liner
  • Front-mount peeler
  • Front-mount guillotine cutter

Recommended Printer Applications

Key Applications for the ZT411 industrial barcode printer are:

  • Asset and Inventory Management
  • Receiving/Shipping
  • Work-In-Progress Tracking
  • Compliance Labeling
  • Information Labeling
  • Quality Control
  • Medical
    • Record Labeling
    • Lab Sample Tracking
    • Prescription Labeling

Zebra Printer Warranties

Call Barcode Southwest at 1-888-764-9965 to see how we can help your company implement the Zebra ZT411 industrial barcode printer.

Or complete our contact form!

Barcode Southwest is a premier supplier of barcode printers and labels for a wide range of industry applications.  We supply to clients all over the Southwest region of the U.S., including, but not limited to, Houston, TX, Austin, Dallas, San Antonio and Waco.

Happy Printing 😊

Please visit our Barcode Southwest Facebook page.

Posted August 16, 2021  By Lucy

Lucy's Blog Picture-Barcode Southwest

Zebra Industrial Barcode Printers for Houston, Austin, Dallas, San Antonio, and Waco

Barcode Printer Installation Tips

Barcode printer installation tips are yet another service provided by Barcode Southwest.  Call us at 888-764-9965 for help with installing your new barcode printer.

When a barcode printer is purchased from Barcode Southwest, we offer an optional installation and training package.  However, this package is not “for” every company.   Here are four easy installation tips and reminders when installing your new barcode printer.



Barcode Printer Installation Tips-Barcode Southwest

Barcode Printer Installation Tips: Four Easy Steps

 Inventory Check

While, it may seem unnecessary to say, the first step in any successful barcode printer installation is unpacking and taking inventory of the printer and accessories.  When preparing for your barcode printer installation, here are four important checks:

  • Be sure the printer delivered is the printer ordered.
  • Check inventory to make sure all necessary cords have been included.
  • Locate the software.
  • Double check to make sure any and all accessories have been included.

Environment Check

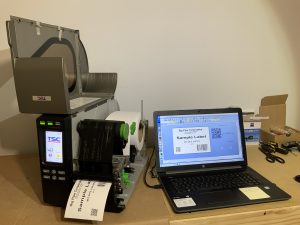

Barcode Printer Installation Tips-Work Environment-Barcode Southwest

A clean, user-friendly environment / location is important.  Creating this environment is your second installation step.

A clean environment (free of dust and clutter-free) is critical to the overall lifespan of your barcode printer and your media.  Having adequate computer/printer work space with easy access to all materials will save productivity time and prevent frustration.  Consider the following three factors when creating your work environment.

  • Sufficient maneuverability for the printer operator.
  • Ample “breathing room” for your printer.
  • Easy access to additional ribbons and labels.

Initial Setup

The third barcode printer installation tip is prepping for the initial setup of your new barcode printer.

  • Power up the barcode printer.
  • Connect the printer to your computer.  Make sure the printer and computer are communicating.
  • Next, follow the material-loading guidelines found on the inside back wall of the barcode printer
  • Install label material and/or ribbon following the factory guidelines inside along the inside wall of the barcode printer.
  • Follow the tips in the next section, Learning the Printer’s Main Menu to prepare the printer for calibration and printing.
  • Finally, print a test label for image quality and position.

Learning the Printer’s Main Menu

The final barcode printer installation tip is learning to use your main menu panel to adjust the printer settings.

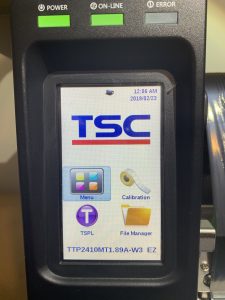

TSC Touch Screen-Barcode Southwest



Printers are shipped with factory settings. However, the label material tested is paper.  If you are printing on a synthetic material such as polypropylene, you may need to adjust the printer settings.

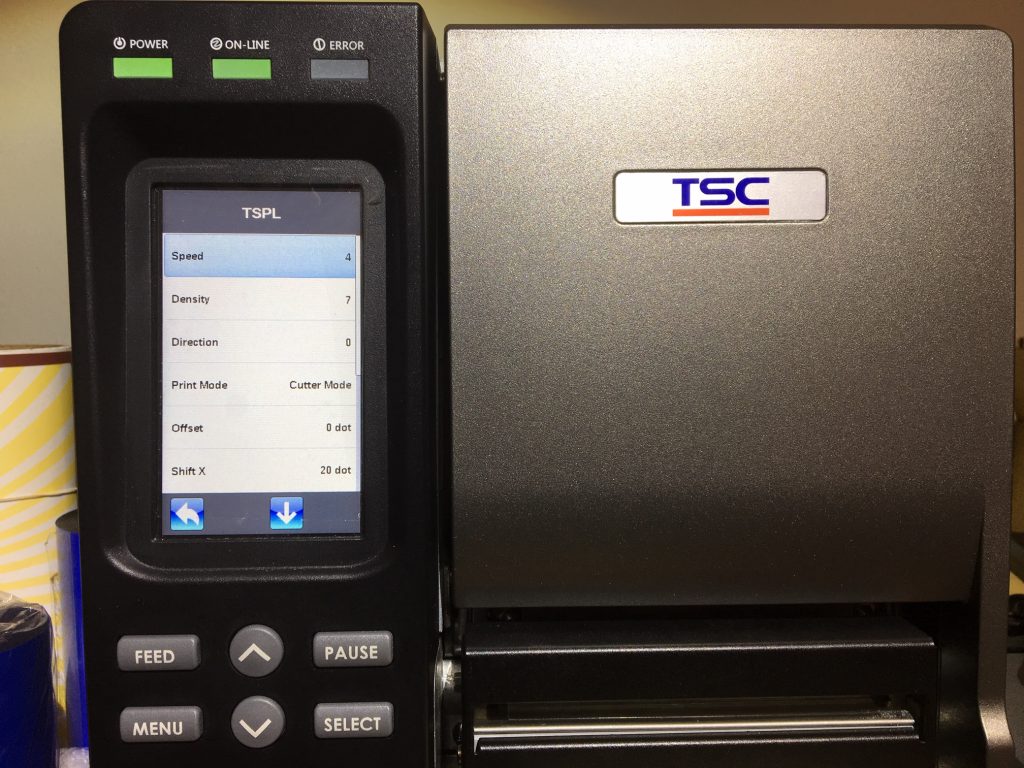

  • Check Printer Speed and Printhead Heat settings.  These two settings are the most critical settings within the menu panel.  These settings control the “burn” that will give your labels a clear and crisp image.
  • Next, calibrate print media (see above picture).  Calibrating the print media will align the image on the label.  It will also adjust to the media thickness.  Improper calibration will result in wasted media.



Call Barcode Southwest at 1-888-764-9965 to see how we can help you have a successful barcode printer installation.  Or complete our contact form!

Barcode Southwest is a premier supplier of barcode printers and labels for a wide range of industry applications.  We supply to clients all over the Southwest region of the U.S., including, but not limited to, Houston, TX, Austin, Dallas and San Antonio.

Happy Printing 😊

Please visit our Barcode Southwest Facebook page.

Posted May 31, 2021 By Lucy

Lucy's Blog Picture-Barcode Southwest

Barcode Printer Installation for Houston, Austin, Dallas and San Antonio.

Barcode Printer Problems With Easy Solutions

Barcode printer problems with easy solutions has become a service specialty for Barcode Southwest.  Call us 888-764-9965 to see how we can help solve your barcode printer problems.

We understand barcode printer problems can be time-consuming, frustrating and painful.  Experience is the best teacher. Through experience, we have learned most barcode printer problems really do have easy solutions.

The most common barcode printer problems fall under three categories:

  • Imaging
  • Feeding Errors
  • Computer/Printer Communication

TSC 2410MT Sensor-Barcode Southwest



Barcode Printer Problems With Easy Solutions

Problem One: Imaging

Imaging problems can be traced to:

  • Label Loading
  • Loading Ribbons

Label Loading

Barcode printer problems with easy solutions begin with the loading of label material.

It may appear easy to load the label material.  However, there are five simple tips to keep in mind when problems arise.

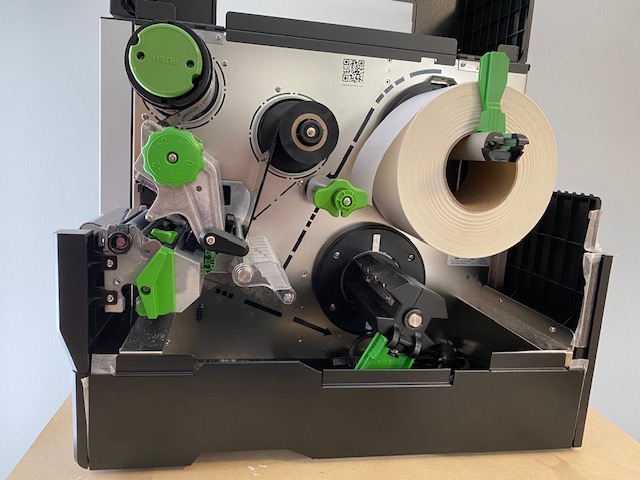

barcode printer problems and user-friendly solutions-loading labels-Barcode Southwest

The first tip is to follow the label feeding guide as shown on the back inside printer panel.  In the absence of above guide, the inside panel of your printer will have arrows to indicate the feeding path.

A second tip is to make sure you feed the labels through and not over the green sensor.  The labels should then lie over the platen roller.

Third, the printhead must be in locked position.

Fourth, be sure to press the “Feed” button to advance to the next label and you are ready for the print job.

Finally, you can locate “How To” installation videos on the manufacturer’s website.  Barcode Southwest has found these videos to be the best resource for those times when you are having barcode printer problems.

Loading Ribbons

The second of our barcode printer problems with easy solutions is ribbon loading.

In the event you are using ribbons, the first step is to ensure you have the correct pairing of ribbon and label material.  Barcode Southwest can help with this pairing to avoid having barcode printer label problems.

  • Some ribbons are “coated in” while others are “coated out.”  Improper loading can result in no image on the label material.  A quick pre-loading tip is to use a piece of tape to check “coating.”
  • If the ribbon unwinds, but does not feed through the guide to the rewind spindle, the ribbon has not been properly loaded.

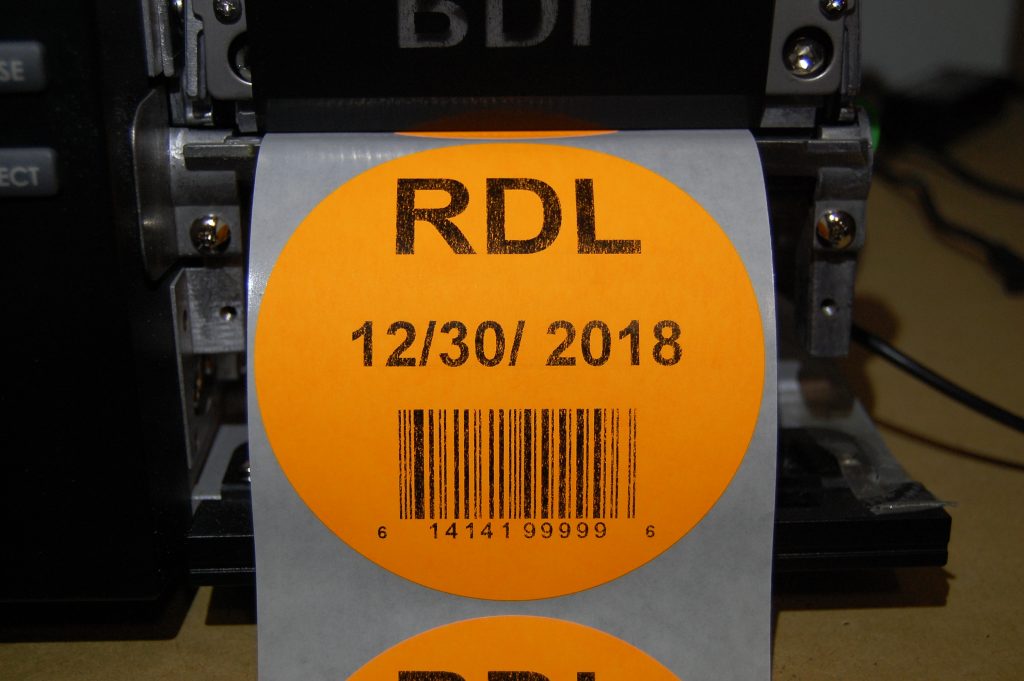

Your second tip is make sure the printhead heat setting is where it needs to be to insure a quality image.

  • If the heat setting is too low, the image will be light.
  • Conversely, if the heat setting is too high, the ribbon may burn through the ribbon.
    • A burned ribbon may cause damage to the printhead.
    • Clogged pixels in the printhead will cause a “void” in the imaging.

As with loading label material, “How To” videos are also available on the printer manufacturer’s website.

Problem Two: Feeding Errors

If you are having “Feed Errors” or the imaging is skipping labels, an easy tip is to calibrate the labels.

barcode printer problems and user-friendly solutions-Barcode Southwest

The purpose of calibrating your media is two-fold.

  • First, calibration measures label thickness to improve imaging.
  • Secondly, the printer must sense either the “gap” or the black mark that indicates the break between each label.  The “gap” is a timing mark that tells the printer when to start and stop printing each label.

Calibrating your labels is a “quick fix” tip.

  • Search the Menu on front of printer and select the “calibrate label” function.  The printer manufacturer “Menu” selection may vary.  The printer will feed several labels searching for the “timing” mark. This should help stop most “Feed Errors.”

 Again, “How To” videos are also available on the printer manufacturer’s website.

Problem Three: Computer/Printer Communication

After the labels and ribbons are properly loaded and the printer has been calibrated, there are two more common problems with easy tips to solve these problems.

Tip Number One: Printer Selection

The printer has been loaded, the number of labels to print has been identified and nothing happens.

  •   IF you have more than one barcode printer, have you selected the correct printer?
  •   Check the print queue for a backlog of print jobs.
    • Clear the print queue.
Tip Number Two: Detached USB or Ethernet Cable

A detached USB or Ethernet cable will lead to a loss of communication between the barcode printer and the computer.

  • A quick inspection of the cable connections will solve this problem.
  • When downloading drivers, make sure you select the correct USB port.

Call Barcode Southwest at 1-888-764-9965 to see how we can help you when you need easy solutions for barcode printer printer problems. Or complete our contact form!

Barcode Southwest is a premier supplier of barcode printers and labels for a wide range of industry applications.  We supply to clients all over the Southwest region of the U.S., including, but not limited to, Houston, TX, Austin, Dallas and San Antonio.

Happy Printing 😊

Please visit our Barcode Southwest Facebook page.

Posted May 17, 2021 By Lucy

Lucy's Blog Picture-Barcode Southwest

Barcode Printers for Houston, Austin, Dallas and San Antonio.

Calibrating The Printronix T6000 Barcode Printer

Calibrating the Printronix T6000 barcode printer is easy.  Call Barcode Southwest at 1(888) 764-9965 to discuss calibration and other features of this industrial barcode printer.

Calibrating Printronix T6000e Industrial Barcode Printer-Barcode Southwest

Calibrating the Printronix T6000 Barcode Printer

Calibrating the Printronix T6000-Barcode Southwest

Learn the Media Guides

The first step in calibrating the Printronix T6000 barcode printer is to spend time learning the printer’s inner workings.  Use the media guides shown on the interior back wall of the printer.

After you have loaded the label material and the ribbon (ribbon for thermal transfer printing), it’s time to calibrate the printer. 🙂

The next step is learning the 3.5″ display panel.  First, press the green button to take the printer “Offline.”  The panel and series of buttons walk you through calibrating the barcode printer.  After the printer is calibrated, press the green button to put it back “Online.”

Calibrating Printronix T6000-Control Panel

The printer must be calibrated whenever new media (labels and tag ) is installed.

To clarify,  if the last print job required a 4 x 6 label and you are loading a new roll of the same label size, the printer will automatically recognize that size.

WHEN a new label size is required, the printer must be calibrated so the sensor can recognize the new label size.  A non calibrated barcode printer will result in Error messages.

Click on the link below to read our October 20, 2020 blog article about this industrial barcode printer.

https://www.barcodesouthwest.com/printronix-t6000-series-industrial-thermal-printers/

for step-by-step guidelines to calibrate the T6000.

Call Barcode Southwest at 1-888-764-9965 to discuss troubleshooting your printer problems.  Or complete our contact form!

Barcode Southwest is a premier supplier of barcode printers and labels for a wide range of industry applications.  We supply to clients all over the Southwest region of the U.S., including, but not limited to, Houston, TX, Austin, Dallas and San Antonio.

Happy Printing 😊

Please visit our Barcode Southwest Facebook page.

Posted May 03, 2021  By Lucy

Lucy's Blog Picture-Barcode Southwest

Printronix T6000 Industrial Barcode Printers for Houston, Austin, Dallas and San Antonio

Barcode Southwest Reaches 100 Blog Articles!

Barcode Southwest Reaches 100 Blog Articles! Yes, we finally did it. Our  primary focus has been on barcode printers and scanners.  However, we also have several articles about application specific labels.  Barcode Southwest specializes in helping companies find the best match between barcode printers, scanners, and labels.  Each company and application will be slightly different. This is why we believe in a front-end consultation and/or an equipment demonstration before the purchase.

When choosing barcode printers, scanners or labels, it is wise to base your decision upon application rather than cost.

Barcode Southwest Reaches 100 Blog Articles-TSC TTP 2610MT-Barcode Southwest

Barcode Southwest Reaches 100 Blog Articles

Barcode Printers- So Many Options!

Size, Speed, and DPI options

All barcode printers do the same thing.  They create an image on selected media.  Some barcode printers are better than others because they are more user friendly and they last longer  When deciding on a new printer, consider the following:

  • User Friendly- Which brand is easy to set up?
  • Application- What size, print resolution, type of environment?
  • Print material- Label, Tag, Continuous, Fan Fold, or Die Cut?
  • Options- Internal Rewinder, Cutter, Peeler, or Free Fall?

Barcode Scanners- So Many Options!

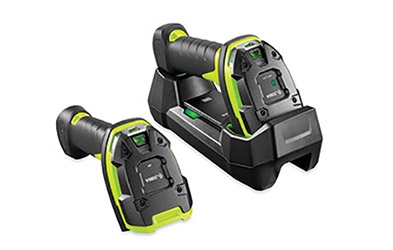

Zebra Rugged Barcode Scanner-Barcode Southwest

All barcode scanners do the same thing.  They scan a 1D or 2D barcode on selected media.  Some barcode scanners are better than others because they are easy to install, scan faster, and produce more reliable scans.  When deciding on a new scanner, consider the following:

  • User Friendly- Which brand is easy to install and set up?
  • Application- Manufacturing, Warehouse, Retail, Healthcare?
  • Durability- Inside or outside environment?
  • Options- Wired, Wireless, Extra Batteries?

Barcode Labels- Match Material With Application!

Thermal Printers and Labels-Barcode Southwest

All labels DO NOT DO the same thing.  They receive an image from the printer.  However, they may be used in a different way.  Some barcode labels are better than others because of the material.   When deciding which material to use, please consider the following:

  • Application- Manufacturing, Warehouse, Retail, Healthcare?
  • Durability- Inside or outside environment?
  • Weather-  Extreme heat, humidity, Extreme cold, rain, snow?
  • Longevity- Paper or Synthetic material?

Barcode Southwest offers consultation and onsite equipment demonstrations to help answer questions about your barcode printer, scanner, and labeling requirements.   Call Customer Service at 888-764-9965 to discuss these and other solutions regarding your printing and labeling needs. Or, fill out this contact form.

Barcode Southwest is a premier supplier of barcode printers and labels for a wide range of industry applications.  We supply to clients all over the Southwest region of the U.S., including, but not limited to, Houston, Austin, Dallas and San Antonio.

Happy printing 😊

Please visit our Barcode Southwest Facebook page.

Posted April 19, 2021  By Lucy

Lucy's Blog Picture-Barcode Southwest

Barcode Printers and Scanners for Houston, Austin, Dallas and San Antonio.  Barcode Southwest Reaches 100 Blog Articles!

TSC MH241 Series Barcode Printers

TSC MH241 series barcode printers are the latest industrial printers offered by this company.  This new series of industrial barcode printers offers updated features while maintaining high speed, high volume printing.  Call Barcode Southwest at 888-764-9965 to learn how the MH241 can work for you.



TSC MH240 series barcode printer

Key Features of the TSC MH241 Series Barcode Printers

The TSC MH241 series barcode printer has two useful features.

The first feature of this industrial barcode printer is its print capability:

  • 8 inch outer diameter label roll capacity.
  • 14 inches per second (ips) print speed.
  • 203 dots per inch (dpi).
  • prints labels up to 4.0 inches wide.

This barcode printer has direct thermal  or thermal transfer (ribbon required) print capability.

The TSC MH241 prints the following media types:

  • Gap.
  • Die cut.
  • Black mark.
  • Continuous.
  • Fan fold.

This industrial barcode printer has the capability to print 1-D and 2-D barcode images as well as QR codes.

The second key feature of the TSC MH241 series barcode printer is its user-friendly nature.

TSC Internal Self-Loading Guide-Barcode Southwest



  • All TSC printers feature a self-loading internal media diagram for print media.  This diagram is (shown on the inside wall of the printer) leaves no user guesswork.  It also saves valuable production time.
  • The 3.5″ color LCD panel with a 6-button menu allows quick set up of  important print features such as calibration and print speed.
  • TSC’s MH241 barcode printers have a sturdy bi-fold media cover.  Keeping this cover closed during operation will help maintain internal cleanliness.
  • Easy printhead and platen roller replacement.

Suggested Applications for the MH241 Series

TSC and Barcode Southwest recommend the following applications:

  • Manufacturing
    • Industrial printing.
    • Warning/Caution signage.
    • Shipping and receiving labeling.
  • Transportation and Logistics
    • Pallet labeling.
    • Distribution.
  • Healthcare
    • Pharmaceutical labeling.

Optional Internal Rewinder for the MH241 Series Barcode Printer





Benefits of an Internal Rewinder

The TSC MH241 industrial barcode printer supports an 8″ OD full roll internal rewinder.

There are three benefits to the internal rewinder:

  • Frees the user from manually rewinding labels.
  • An enclosed rewinder saves desk space.
  • Neatly rewinds labels on a 1″ or 3″ core.

Other Available Options for the TSC MH241 Barcode Printer

 Barcode Southwest recommends three additional dealer options for your TSC MH340P industrial printer:

  • The first option is a regular OR the heavy-duty full cut guillotine cutter.
  • A second option is the label peel off kit.  This kit is useful when only a very few labels are needed.

Peeler Kit for the TSC MH340 Barcode Printer-Barcode SouthwestRegular Cutter for the TSC MH340 Barcode Printer-Barcode Southwest

Peel off  Kit                                                    Cutter

TSC Limited Warranty

TSC offers a best in industry warranty with three outstanding features.

First, the TSC MH241 barcode printer comes with a two year printer warranty.

Second, the printhead has a 12 month or 1 million linear inches (whichever comes first) limited warranty.

Last, the platen roller has a 12 month or 2 million linear inches (whichever comes first) limited warranty.

Call Barcode Southwest at 1-888-764-9965 to see how we can help your company implement the TSC MH240 barcode printer with internal rewinder.  Or complete our contact form!

Barcode Southwest is a premier supplier of barcode printers and labels for a wide range of industry applications.  We supply to clients all over the Southwest region of the U.S., including, but not limited to, Houston, TX, Austin, Dallas and San Antonio.

Happy Printing 😊

Please visit our Barcode Southwest Facebook page.

Posted April 05, 2021 By Lucy

Lucy's Blog Picture-Barcode Southwest

TSC MH241 Industrial Barcode Printer for Houston, Austin, Dallas and San Antonio.

Barcode Printer Management By SOTI CONNECT

Barcode printer management powered by SOTI CONNECT provides complete lifecycle management of TSC and Printronix Auto ID desktop, industrial and RFID printer models.  Call Barcode Southwest at 888-764-9965!  Let us help you better manage your entire fleet of barcode printers.

TSC MH 241 Printers-Barcode Southwest

TSC MH 241 Printers

Barcode Printer Management By SOTI CONNECT

SOTI CONNECT is highly flexible, data-driven architecture means new printers are quickly supported and managed, reducing deployment time for IoT initiatives. SOTI Connect delivers on what matters: increased reliability of an organization’s printer fleet and the quality of the materials being printed.

5 Reasons to Choose SOTI Connect for Your Printers

  1. Easily Update Firmware and Apps from a Single Console
    Remotely install maintenance releases or add new capabilities from TSC Printronix Auto ID to enable the latest and greatest features.
  2. Reduce Unexpected Print Downtime and Workflow Disruptions
    Set up automation rules to issue alerts and actions when pre-defined conditions are met to empower IT administrators to stay ahead of end user needs.
  3. Change Printer Settings From Any Location
    Adjust configurations and settings remotely to maintain print consistency and ensure optimal print quality.
  4. Provide Visibility and Management for Unattended Business-Critical Printers
    Instant access and real-time information to printer endpoints, and the ability to immediately troubleshoot and resolve issues, eliminates unnecessary and expensive onsite maintenance, returns and Direct-to-Factory repairs.
  5. Collect and Analyze Data to Continue Optimal Printer Performance
    From battery level to operating temperature, collect valuable printer health information to fine tune configurations and ensure printers reliably operate at full capacity, around the clock.

SOTI CONNECT Brochure

Call Barcode Southwest at 1-888-764-9965 for more information about TSC’s barcode printer management powered by SOTI CONNECT.  Or complete our contact form!

Barcode Southwest is a premier supplier of barcode printers and labels for a wide range of industry applications.  We supply to clients all over the Southwest region of the U.S., including, but not limited to, Houston, TX, Austin, Dallas and San Antonio.

Happy Printing 😊

Please visit our Barcode Southwest Facebook page.

Posted March 22, 2021 By Lucy

Lucy's Blog Picture-Barcode Southwest

Thermal Transfer Industrial Barcode Printers for Houston, Austin, Dallas and San Antonio.

Poor Barcode Imaging: Troubleshooting Tips

Poor barcode imaging: troubleshooting tips will help you learn how to get the most mileage from your printhead.  Our most frequent “HELP!” calls are related to poor imaging.  Call Barcode Southwest at 1(888) 764-9965 to discuss these and other troubleshooting tips.

Poor Barcode Imaging: Dirty Printhead-Barcode Southwest

Trouble Shooting Tips for Poor Barcode Imaging

Keep the Printhead Clean

Poor barcode imaging can generally be traced to a dirty printhead on your thermal printer.  The print head is a very sensitive component of your barcode printer.  It is also the most expensive consumable component of any barcode label printer.

The function of the printhead is to transfer information from your label design to the actual label material.  The “lightbulbs” on the printhead must be kept clear of environmental dust and debris from the ribbon.

There are two reasons why you are experiencing poor imaging in thermal printers.  Let’s start with the two easiest solutions for poor imaging in thermal printers.

Issue # 1: Faint or Missing Image

Poor Barcode Imaging-Barcode Southwest

Poor barcode imaging in thermal printers can result faint, smudged, or missing images. Typically, these issues are the due to a dirty printhead.

There is constant contact between the print ribbon and media. As a result, the printhead collects dust, ribbon particles and label adhesive.

Solution: Clean the Printhead

Poor Barcode Imaging: Clean With 99% Isopropyl Alcohol-Barcode Southwest

Use 99% Isopropyl Alcohol or acetone and a cloth to clean the dirty printhead.  Proper maintenance will help prevent faint or missing images.

Getting the best imaging from your thermal printer requires a regular cleaning.  Barcode Southwest recommends a weekly cleaning.

Issue # 2: Printer Speed

A second poor imaging solution involves correct printer speed. Printer speed, a clean printhead, and compatible ribbon /label formulation relate directly to imaging quality.

Solution: Find the Best Printer Speed

Printer manufacturers (available within specifications) show the maximum speed of each printer.  You must determine the correct speed for your specific label printing application.

Keep in mind, the correct print head heat or density setting along with printer speed will result in the highest quality barcode printer imaging.  The lowest print head heat setting will usually give you the longest life span of the print head.

These Poor Barcode Imaging: Troubleshooting Tips should help give you a place to start in solving your imaging problems.

Call Barcode Southwest at 1-888-764-9965 to discuss troubleshooting your printer problems.  Or complete our contact form!

Barcode Southwest is a premier supplier of barcode printers and labels for a wide range of industry applications.  We supply to clients all over the Southwest region of the U.S., including, but not limited to, Houston, TX, Austin, Dallas and San Antonio.

Happy Printing 😊

Please visit our Barcode Southwest Facebook page.

Posted March 08, 2021  By Lucy

Lucy's Blog Picture-Barcode Southwest

Poor Barcoding Imaging Solutions for Houston, Austin, Dallas and San Antonio
